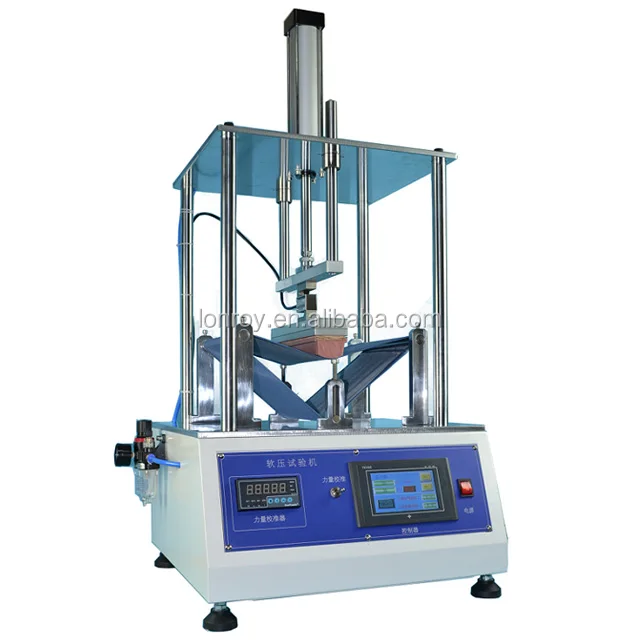

Mobile Phone Soft Press test Machine/ Cellphone Soft Pressure Testing Machine

Name: Mobile Phone Soft Press test Machine Cellphone Soft Pressure Testing Machine
Brand: LONROY
Price: 1 USD

Brand Name : LONROY

Place of Origin : Guangdong, China

Model Number : LR--225

MOQ : 1

Number of stations : 1 per set

Actuator type : cylinder

Pressure range : 10 ~ 500N (adjustable)

Test extrusion pressure : 250N

Sitting pressure frequency : 1 ~ 30 times/min (adjustable)

Sitting pressure head : soft pressure head (silica gel material)

Support surface : elastic woven belt (can be specified)

Max specimen size : W200xD100xH40mm

Counter digits : 8 bits (built-in)

Operating voltage : 220V

Air source pressure : 0.5mpa

Overall dimensions : W550 x D480 x H1180mm

Machine weight : 80kg

Pressure head material : silica gel

Power type : Electronic

Contact Now

Mobile phone soft press test machine/ cellphone Soft Pressure Testing Machine

Use

Mobile phone soft press test machine/ cellphone Soft Pressure Testing Machine is suitable for mobile phone and other products.With a certain hardness of silica gel as the pressure head, driven by the cylinder, adjust a certain pressure, measure the number of times to see the extent of damage.

Mobile phone soft press test machine/ cellphone Soft Pressure Testing Machine

Characteristics

1. Reasonable and unique structure design, fully applicable to different types of mobile phones.

2. Stable operation, low noise and maintenance free.

Technical parameters

1. Number of stations: 1 per set

2. Actuator: cylinder

3. Pressure range: 10 ~ 500N (adjustable) test extrusion pressure: 250N

4. Sitting pressure frequency: 1 ~ 30 times/min (adjustable)

5. Sitting pressure head: soft pressure head (silica gel material)

6. Support surface for sitting pressure: elastic woven belt (can be specified)

7. Maximum allowable size of specimen: W200xD100xH40mm

8. Counter: 8 bits (built-in)

9. Voltage: 220V

10. Air source: 0.5mpa

11. Overall dimension: W550 x D480 x H1180mm

12. Weight: 80kg
